| Brand Name : | ShuangYi |
| Model Number : | SATA-C15F-X4X9A2-000R |
| Certification : | ROHS, HF, ISO 9001, ISO 14001, IATF 16959 |
| Price : | $0.04-0.07 PCS FOB |
| Payment Terms : | T/T |
| Supply Ability : | 500000 pcs per month |
| Delivery Time : | 8-15 working days |
Product Description

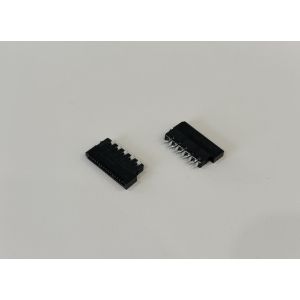

This 2.54 mm pitch 5-pin IDC female connector is designed for compact and reliable wire-to-board electrical signal and low-power transmission. The vertical through-hole design provides stable solder joints and good mechanical retention on the PCB. Tin-plated copper-alloy terminals offer low contact resistance and consistent conductivity, while the PA66 UL94V-0 housing ensures long-term insulation and flame-retardant performance.
The connector supports customized pin counts, plating options, and pre-assembled cable harnesses to match different PCB layouts and system requirements. It is suitable for automated production and supports repeated mating with matching headers while maintaining contact reliability.
| Pitch | 2.54 mm |
| Number of positions | 5 pins |
| Connector type | IDC female wire-to-board connector |
| Mounting | Vertical, through-hole on PCB |
| Contact material | Copper alloy, tin plated (gold optional) |
| Housing material | PA66, UL94V-0 flame-retardant |
| Rated current | Up to 3 A per contact |
| Rated voltage | Up to 250 V AC/DC |
| Operating temperature | −40 °C to +105 °C |
| Compliance | RoHS, HF, REACH compliant |
| Customization | Pin count, cable length, plating, harness assembly |
Applications
PCB interconnection in consumer and industrial electronics
Automotive control modules and sensor wiring
Server, storage and communication equipment signal interfaces
Power control boards, chargers, instrumentation and metering devices
Custom wire harness and cable assembly projects requiring 2.54 mm pitch connectors
Use within the specified current and voltage ratings to avoid overheating.
Match with compatible 2.54 mm pitch male/board headers to ensure proper mating.
Follow recommended PCB footprint and soldering profiles for secure mounting.
Avoid excessive insertion/withdrawal force or twisting to prevent contact deformation.
Store and use in clean, dry environments to maintain terminal surface quality.
|
|
