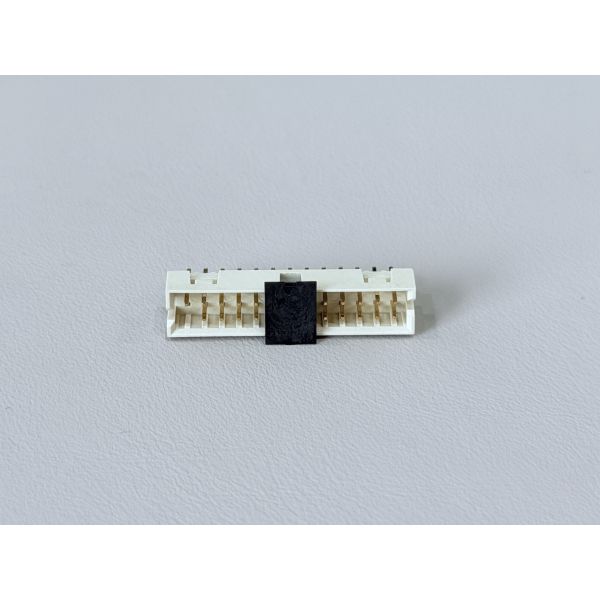

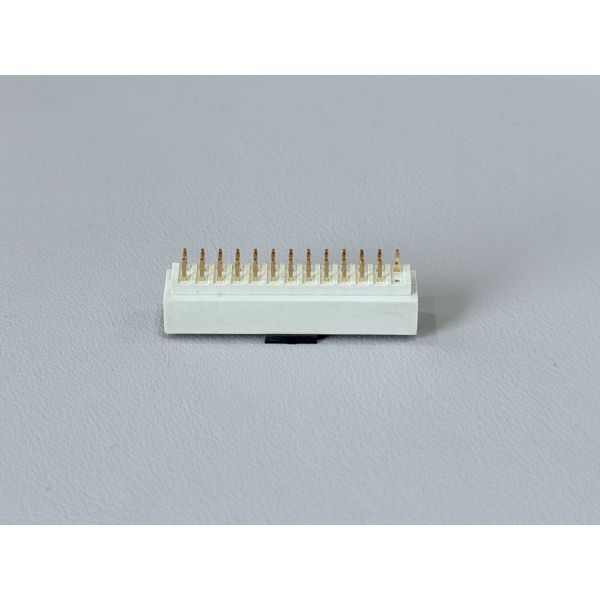

This 2.00mm pitch 2×13 Pin Header Connector is designed for high-density PCB applications requiring stable
signal and low-power transmission. The connector features high-temperature LCP UL94-V0 housing and H65 brass terminals, providing excellent mechanical strength and long-term durability.
The terminals are plated with Nickel 50 µ” (min) and Gold-Flash (G/F) on the contact area to ensure superior corrosion resistance and
reliable conductivity. The 2.5 mm exposed tail design offers strong soldering performance for through-hole PCB
mounting.
With up to 2A per pin and 1.0 kgf minimum retention force, this connector delivers secure electrical contact suitable for
various compact or multi-pin electronic designs. Its halogen-free
materials meet strict environmental requirements for industrial and
commercial applications.
| Product Type | Dual-Row Pin Header Connector |
| Pitch | 2.00 mm |
| Pin Count | 2×13 Pins (26 Pins) |
| Mounting Type | Through-Hole Vertical PCB Mount |
| Positioning Post | None |
| Housing Material | LCP E130i Natural, UL94-V0 |
| Cap Material | LCP Black UL94-V0 |
| Terminal Material | Brass H65 |
| Plating | Nickel ≥50 µ” base, Gold Flash on contact area |
| Salt Spray Test | 24 Hours |
| Current Rating | 2A Max per pin |
| Single Pin Retention Force | ≥1.0 kgf (before reflow) |
| Environmental | HF (Halogen Free) |
| Tail Length | 2.5 mm exposed tail |
| Application | Signal & low-power electrical connection |
⚙️ Applications
- PCB Signal & Data Transmission: Used for board-to-board or board-to-module connections, including
low-voltage signals, data transmission, and control interfaces.
- Consumer Electronics: Common in smart home appliances, printers, cameras, displays,
controllers, and handheld devices for internal signal routing.
- Industrial Automation & Control Systems: Applied in PLCs, industrial control boards, sensors, meters,
robotics modules, and automation I/O interfaces.
- Servers & Data Center Equipment: Used for backplane interfaces, storage modules, communication
boards, and signal expansion connectors.
- Automotive Electronics: Suitable for ECUs, BMS modules, sensor units, dashboards,
infotainment systems, and on-board control interfaces.
- Communication & Networking Devices: Used in routers, switches, IoT gateways, RF modules, and network
communication cards.
- IoT & Smart Device Modules: Applied in Bluetooth modules, WiFi modules, GPS/Beidou modules,
sensor nodes, and embedded system expansion ports.
- Power Control & Monitoring Boards: For auxiliary power transmission, monitoring signals, and
low-power control circuits.
- Custom OEM/ODM Electronic Designs: Ideal for designs requiring customizable pin count, pitch, height, plating option, and configuration.
⚠️ Notes
- Ensure Correct Pin Alignment: Check orientation and positioning before mating to avoid
mis-insertion, bent pins, or PCB pad damage.
- Do Not Exceed Electrical Ratings: Follow the specified current and voltage limits to prevent
overheating or contact failure.
- Proper Insertion and Extraction Force: Avoid excessive force during mating/unmating to prevent
deformation, cracked solder joints, or pin damage.
- Keep Contact Surfaces Clean: Ensure terminals remain free from dust, oil, oxidation, or
contaminants that reduce conductivity.
- Follow Recommended Soldering Conditions: Use appropriate soldering temperature profiles according to
plastic materials such as LCP, PA6T, PA66, or PBT.
- Verify PCB Hole Tolerance: Incorrect hole size may cause inadequate solder filling or
mechanical instability.
- Avoid Mechanical Stress After Assembly: Do not apply lateral pressure or bending forces, especially for
SMT pin headers.
- Maintain Proper Storage Conditions: Store in a dry, dust-free environment to prevent terminal
oxidation; use anti-static packaging if required.
- Confirm Compatibility with Female Header: Ensure matching pitch, pin count, height, and contact design to
avoid mating failure.
- Choose Correct Plating Specification: Select proper plating (gold, tin, nickel) based on your
application’s durability, corrosion resistance, and signal
reliability needs.
