Product Description

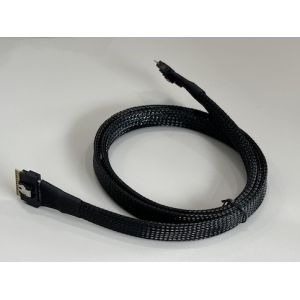

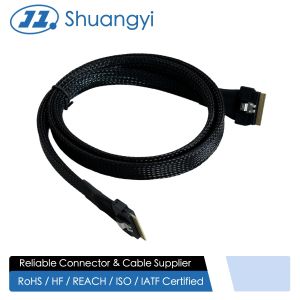

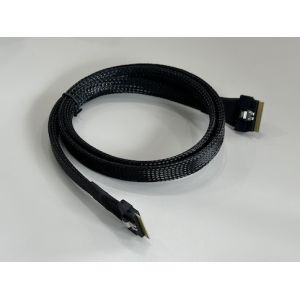

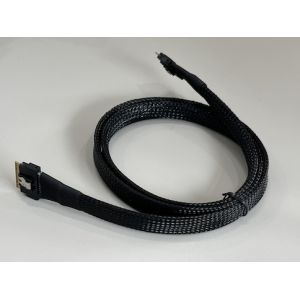

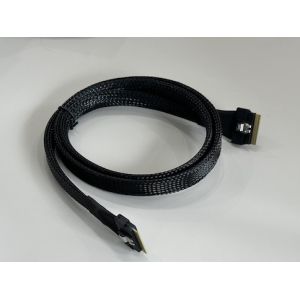

This SFF-8654 8i to SFF-8654 8i high-density connector cable is designed for next-generation high-speed storage and PCIe
applications inside compact electronic systems. Both ends are
equipped with Mini SAS HD male connectors using precision crimp terminals and secure latching shells, providing a reliable mating interface
to host and backplane PCB headers.
The 30/32AWG copper twinax wire cable is engineered for an 85-ohm differential impedance, supporting
clean digital signal transmission for SAS, NVMe, and other high-bandwidth protocols. Each pair is
foil-shielded with an overall braided screen to minimize crosstalk
and EMI in dense server and industrial control enclosures. A black
PET braided sleeve improves abrasion resistance, airflow and cable
management while keeping the harness flexible.
With full OEM/ODM customization capability, the assembly can be adapted to different pin-outs,
lengths, labeling, or combined with auxiliary power and control
lines, giving system integrators a complete high-speed interconnect
solution.
| Interface Type | Internal Mini SAS HD SFF-8654 8i to SFF-8654 8i connector cable |
| Connector A | SFF-8654 8i male connector, latch type, black PBT housing, crimp
terminals |
| Connector B | SFF-8654 8i male connector, latch type, black PBT housing, crimp
terminals |
| Pin Count | 8-lane high-density signal connector (multiple differential pairs
and ground pins) |
| Impedance | 85 Ω differential, matched for high-speed signal transmission |
| Wire Type | UL20744 high-speed twinax cable, 30/32AWG 1P + 2EAM SAS 3.0 cable |
| Conductor | Stranded copper electrical wire |
| Shielding | Individual foil plus overall braid shielding |
| Outer Jacket & Sleeve | PVC jacket with black PET braided sleeve |
| Color | Black |
| Standard Length | 1000 mm (other cable lengths available by customization) |
| Rated Voltage | 30 V AC/DC max (signal and low-power use) |
| Operating Temperature | -25 °C ~ +80 °C |
| Insulation Resistance | ≥ 10 MΩ (DC) |
| Compliance | RoHS compliant |
| MOQ | 100 pcs |
| Customization Options | Labeling, length, routing, connector pitch / keying, PCB side
header mating, OEM/ODM wire harness design |
| Packaging | PE bag packing or custom branded packing on request |
Applications
Internal connection between Mini SAS HD host ports and SAS-8087
backplanes in 1U/2U/4U rackmount servers
Expansion links in JBOD/JBOF enclosures, DAS/NAS devices and
enterprise storage arrays
High-density RAID subsystems in data centers and GPU/AI servers
where compact, shielded cables are required
Industrial computers and embedded systems using SAS-based SSD/HDD
modules on customized PCB backplanes
Precautions
Confirm that host and backplane interfaces are SFF-8643 and
SFF-8087 respectively and that the pin assignment matches the
system design before mating the connectors.
Avoid excessive bending near the over-molded terminals; follow the recommended minimum bend radius of the SAS wire cable to preserve impedance and lifespan.
Keep the harness away from sharp edges, high-current power lines and strong EMI sources wherever possible to maintain stable
high-speed signal quality.
For special environments such as telecom, industrial or automotive electronics, enhanced temperature rating, additional shielding,
and dedicated connector or pitch options can be customized on request.
