Product Description
This assembly integrates a full 22Pin SATA device connector with a separate 7Pin SATA data plug and a 4Pin power header,
allowing both signal and power to be routed from a controller board to a drive using one compact wire cable set. The flat red SATA cable carries high-speed electronic data,
while twisted yellow, red and black power wires deliver stable DC output to the drive’s power terminals.
The device-side connector includes mounting ears for secure
fixation to brackets or metal frames, helping to protect the pins against vibration in rack-mount server or industrial applications. The 4Pin female housing mates with
standard low-pitch PCB connectors, making it easy to pull power from custom boards instead of a
traditional PSU harness. Multiple options are available for wire
gauge, cable length, connector pitch and labeling to support OEM customization for storage, networking, DVR and light automotive electronics.
| Product Type | Combined SATA power & signal cable connector assembly |

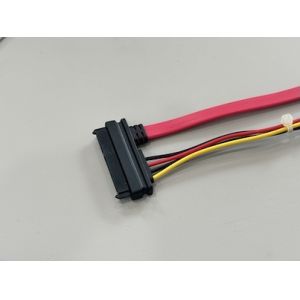

| Device Side Connector | 22Pin SATA device connector (7Pin signal + 15Pin power) |

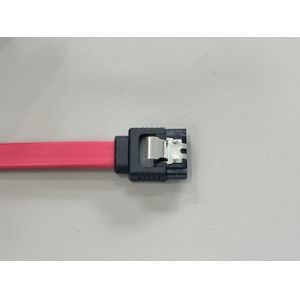

| Host Data Connector | 7Pin SATA male plug on flat red cable |

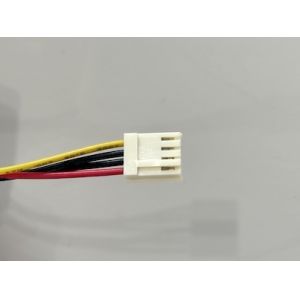

| Power Input Connector | 4Pin female housing for PCB / board header (2.0–2.54 mm pitch,
customizable) |
| Signal Cable | Serial ATA flat cable, 26/28AWG stranded copper |
| Power Wires | Yellow / red / black 18–22AWG tinned copper electrical wire |
| Rated Data Speed | Up to 6 Gb/s SATA III transmission |
| Rated Voltage | 5 V / 12 V DC |
| Rated Current | 2–3 A per power line (depending on gauge and length) |
| Conductor Material | Oxygen-free copper conductors for low-loss transmission |
| Terminal Material | Copper alloy terminals, tin or selective gold plated |
| Housing Material | PA / PBT, UL94V-0 flame-retardant |
| Cable Length | Typical 30–50 cm; length, routing and color can be customized |
| Operating Temperature | -20 °C to +80 °C |
| Compliance | RoHS / REACH compatible |
| Application | 2.5"/3.5" HDD, SSD, optical drive, DVR, industrial and server
storage systems |
Applications
Connecting SATA HDD / SSD or slim optical drives to embedded
controller boards with 4Pin power headers
Internal storage wiring in compact PCs, workstations, NAS units and
1U/2U servers
DVR / NVR, data logger and industrial monitoring equipment
requiring tidy SATA cable connector assemblies
Custom PCB backplanes where device power is generated on-board and
fed via a dedicated 4Pin connector
Prototyping and test fixtures for electronic storage modules that
need combined data and power harnesses
Precautions
Confirm the pin definition of the 4Pin power header and SATA connectors before installation; incorrect mapping of power and ground pins may damage the drive or PCB.
Ensure that the total current drawn by the device does not exceed
the rating of the power wires and mating terminals.
Avoid tight bends or repeated twisting close to the molded housings
to maintain reliable data and power transmission.
Keep the assembly away from sharp edges, hot components and moving
fans; secure the cable with clips or ties for strain relief.
Variants with shielded data pairs, additional branches, different
connector pitch or mixed power-only leads can be supplied for batch
and project orders.
