Product Description

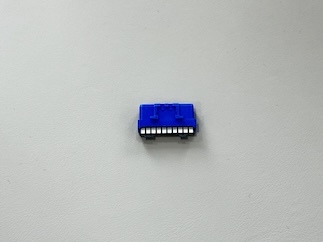

This IDC 20-Pin Dual-Row Fully-Shrouded Male Connector is designed for reliable PCB-to-wire and PCB-to-PCB electrical interface applications. The fully-enclosed housing provides enhanced mechanical protection and ensures secure mating with IDC ribbon cables. Its 2.00mm pitch, exposed gold-flash terminals, and reinforced pin structure deliver excellent conductivity, signal stability, and long-term durability.

The connector is suitable for electronic devices requiring compact, stable, and high-density pin configurations. Gold-flash plating improves corrosion resistance, supports consistent transmission quality, and ensures dependable performance in demanding industrial environments.

Applications

Computer servers and data-storage equipment

Industrial control systems and automation devices

Consumer electronics and smart home products

Automotive electronic modules and dashboard units

Communication devices, routers, network boards

Testing instruments and measurement equipment

Custom wire harness assemblies and PCB assemblies

Precautions

Ensure proper alignment with the mating IDC ribbon cable before applying pressure.

Avoid excessive bending of the pins during assembly to maintain signal integrity.

Recommended to follow PCB layout dimensions from the technical drawing for optimal soldering.

Use in dry environments or ensure proper enclosure protection if moisture exposure is expected.

For high-current or high-frequency applications, confirm compatibility with system requirements.
