Our SATA connector series is designed for stable data transmission
and high reliability. With customizable pin count, pitch,
materials, and plating specifications, we offer tailored solutions
for diverse applications. Produced in our automated facilities with
strict quality control, these connectors ensure excellent
durability, heat resistance, and hot-swap performance. Widely used
in computers, servers, and industrial storage devices, they deliver
precision connection and long-lasting performance.
ShuangYi Precision — Powering Smarter Connections.
Why Choose Us:
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
Notice: The displayed price is only for reference. Contact us now for the
best offer and detailed quotation!

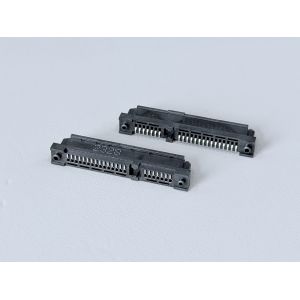

This SATA 22-Pin Female SMT Connector is designed for high-reliability power and signal transmission in storage devices and server hardware.
Manufactured with LCP G/F UL94-V0 high-temperature housing and phosphor bronze terminals, it ensures stable conductivity and mechanical strength.
The terminals feature 50µ" nickel underplating, 15µ" gold plating on the contact area, and 80µ" tin plating on the soldering region, offering enhanced corrosion resistance and long service life.
With 1.5A power capability, low contact resistance, and excellent insulation performance,
this connector supports high-speed SATA data transmission and
durable PCB mounting.
Its SMT board-mount design supports automated assembly, ensuring high consistency and durability for servers, industrial computers, automotive electronics, SSD/HDD
devices, communication equipment, and other PCB-based electronic applications.
Key Advantages:
- Gold-plated G/F contacts for superior signal integrity
- High-temperature LCP housing suitable for reflow soldering
- Mechanical durability up to 200 cycles/hour
- RoHS & HF compliant materials
- Stable power + signal combined transmission (15P + 7P)
| Product Type | SATA 22Pin Female Connector (Board-Mount / SMT Type) |
| Pin Count | 22 Pins (15P Power + 7P Signal) |
| Rated Current | 1.5A @ 40VAC |
| Contact Resistance | ≤30mΩ |
| Withstand Voltage | 500VAC / 1 minute |
| Insulation Resistance | ≥1000MΩ |
| Operating Temperature | −20°C to +85°C |
| Terminal Plating | Ni ≥50µ”, Contact Area Au ≥15µ”, Solder Area Tin ≥80µ” |
| Housing Material | LCP G/F Black UL94-V0 |
| Terminal Material | Phosphor Bronze C5191-H |
| PEG | Brass C2860-H, Ni ≥50µ”, Tin ≥80µ” |
| Durability | 200 cycles/hour max (EIA 364-09), Backplane 50 cycles |
| Salt Spray Test | 24 hours (Tin area) |
| RoHS / HF | Compliant |
| Mounting Type | SMT, Board-mount |
| Applications | PCB, server storage, HDD/SSD, power-signal transmission |
⚙️ Applications
- Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on
HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
- Communication & Networking Systems – For routers, switches, base stations and other networking
equipment that need compact PCB connectors and reliable high-speed
transmission.
- Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data
loggers and test instruments as PCB-to-wire or cable connectors.
- Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV
chargers and energy-storage systems for signal and low-power
transmission.
- Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector
customization for PCB, wire and cable layouts in electrical and
electronic devices.
⚠️ Notes
- Make sure the working voltage, current and temperature of your
design stay within the connector’s rated values, with proper safety
margin.
- Design PCB pads, holes and mechanical space according to the
drawing and pitch, and avoid bending or twisting stress on the
connector after soldering or assembly.
- Select appropriate wire gauge, insulation and cable structure based
on current load, signal speed and bending requirements for both
power and signal terminals.
- For IDC / crimp types, use matched tooling and press-force to
ensure full insulation displacement; for solder types, follow a
controlled soldering profile to avoid overheating the LCP housing.
- Insert and pull out the connector along the mating direction, avoid
pulling on the cable itself, and do not exceed the specified
mating/unmating force or durability cycles.
- Keep gold-plated contact areas clean and dry, avoid touching them
with bare fingers, and store products in dry anti-static packaging
before assembly.
