Product Description

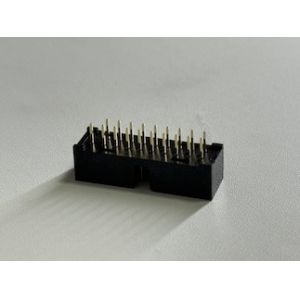

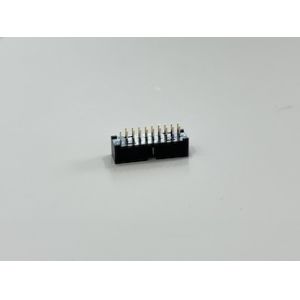

This 20-pin dual-row IDC male connector features a fully-shrouded design for improved alignment and mating stability. The 3.2mm exposed pins support efficient PCB soldering, ensuring reliable electrical performance in signal and low-power transmission systems.
Gold-flash/full-gold (G/F) plating enhances corrosion resistance, low contact resistance, and long-term durability, making it suitable for high-performance electronic applications.
The connector is manufactured with high-temperature resistant materials and supports customization, including pin length, plating thickness, and special PCB mounting requirements.

Applications

Industrial controllers and automation equipment

Server backplanes and communication modules

Consumer electronics and embedded systems

Automotive electronics wiring and PCB interfaces

Signal transmission, ribbon-cable assemblies, and IDC flat-cable connections

Precautions

Ensure correct pin alignment before mating to avoid damage to contacts.

Suitable for low-voltage applications only; not intended for high-power circuits.

Observe recommended soldering temperature profiles to prevent housing deformation.

Avoid excessive mechanical stress on exposed pins during assembly.

For outdoor or harsh environments, enhanced plating or sealing options are recommended.
