Product Description

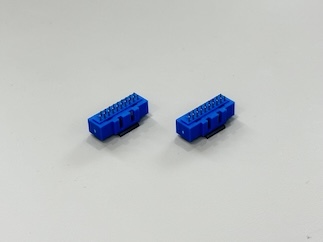

This 20-Pin IDC Dual-Row Enclosed Male Connector is designed for high-reliability electronic and signal-transmission applications. Built with a fully enclosed housing and 3.2mm exposed pins, it offers secure alignment, stable mating force, and enhanced durability for PCB mounting.

The reinforced pin-header structure ensures excellent conductivity, while the high-temperature thermoplastic housing guarantees long-term resistance to heat, vibration, and mechanical stress.

Engineered for modern electronics, this connector supports precise PCB signal routing and offers stable electrical performance for multi-pin wiring harnesses. Custom plating and configuration options allow seamless integration into automotive, industrial, and server-grade systems.

Applications

PCB-mounted signal transmission modules

Industrial automation equipment

Automotive electronic control units

Consumer electronic devices

Server and storage hardware

Communication interface boards

Customized wiring harness assemblies

Precautions

Ensure correct pin alignment before insertion to avoid bent contacts.

Suitable for PCB through-hole soldering; verify pad layout before assembly.

Keep connectors away from excessive moisture, dust, or corrosive environments.

Follow recommended operating temperature for stable long-term performance.

For high-current or high-frequency requirements, select enhanced plating options.

Reel packaging is optimized for automated pick-and-place; handle with care to maintain tape integrity.
