Our SAS 3.0/4.0 series connectors deliver exceptional data transfer
speeds of up to 24 Gb/s, ensuring stable and efficient transmission
for enterprise storage and server systems. Designed with high
reliability and hot-plug capability, each connector undergoes
strict quality control and automated precision manufacturing. With
flexible customization options and strong R&D support, our SAS
connectors are ideal for both board-to-board and wire-to-board
applications in enterprise storage systems, servers, and data
centers requiring consistent, high-speed performance. ShuangYi
Precision — Powering Smarter Connections.
ShuangYi Precision — Powering Smarter Connections.
Why Choose Us:
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
Notice: The displayed price is only for reference. Contact us now for the
best offer and detailed quotation!

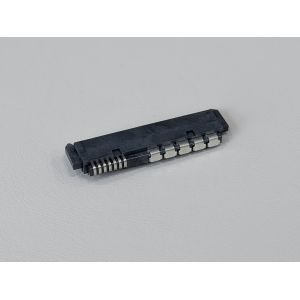

The SAS 29P Right-Angle Solder Female Cable Connector with Positioning
Peg is a high-reliability electronic signal and power connector designed for SAS-based server, storage and industrial systems.
With a true 29-pin female layout and 1.27mm pitch, this connector is ideal for compact, high-density PCB-to-wire cable interconnections where the cable needs to exit at a 90-degree angle.
Terminals are made from phosphor bronze C5191-H (t = 0.25mm) and finished with a robust multi-layer plating system:
50U" minimum nickel over the entire terminal for corrosion resistance;
15U" minimum gold on the contact area providing low contact resistance and stable high-speed electronic
signal performance;
80U" minimum tin on the solder area to ensure strong, reliable solder joints to copper wires.
The connector housing uses glass-filled LCP, black, UL94-V0, halogen-free, giving excellent mechanical strength, heat resistance and
dimensional stability.
Electrically, the connector is rated at 1.5A @ 40VAC, with contact resistance ≤30mΩ, insulation resistance ≥1000MΩ, and withstand voltage 500VAC/minute. Mechanical specifications include mating force up to 25N (backplane) / 50N (cable), unmating force at least 5N / 20N, single-pin retention ≥0.8kgf, and up to 500 cycles (backplane) / 25 cycles (cable) at 200 cycles/hour.
The right-angle solder tails, thickened back cover and positioning peg together provide strong cable support, accurate positioning and
improved vibration resistance, making this connector an excellent
choice for customized wire cable, electrical signal and power transmission solutions.
| Product Type | SAS true 29P straight body right-angle (R90°) solder-type female
cable connector with positioning peg and thick back cover |
| Interface Series | SAS series |
| Number of Positions | 29 pins (true 29P female) |
| Pitch of Housing | 1.27mm (C: 1.27 pitch of housing) |
| Gender | Female connector |
| Links Way of Terminal with Wire | S3: solder way of R90° terminal with wire (right-angle solder tails
for cable) |
| Plating Specification Code | A5: Au 15U" plated |
| Rated Current / Voltage | 1.5A @ 40VAC |
| Operating Temperature | –20°C to +85°C |
| Contact Resistance | ≤ 30mΩ (Max) |
| Withstand Voltage | 500VAC / minute |
| Insulation Resistance | ≥ 1000MΩ (Min) |
| Terminal Plating – Base | Ni 50U" min plated over terminal |
| Contact Area Plating | Au 15U" min plated on contact area |
| Solder & Crimp Area Plating | Sn 80U" min plated on solder & crimp area |
| Mating Force | Backplane ≤ 25N max; Cable ≤ 50N max |
| Unmating Force | Backplane ≥ 5N min; Cable ≥ 20N min |
| Mate / Un-mate Durability | 200 cycles/hour max; backplane 500 cycles, cable 25 cycles (per EIA
364-09) |
| Single Pin Retention Force | ≥ 0.8kgf per pin |
| Salt Spray Test | Gold-plated area ≥ 48 hours; tin area not controlled |
| Housing Material | LCP G/F, Black, UL94-V0, Halogen-Free (HF) – HSS-C29F-011 |
| Terminal Material | Phosphor Bronze C5191-H, t = 0.25mm (TS-C15F-S61 / TS-C07F-S06 /
TS-007F-P02) |
| Environmental | HF (Halogen-Free) materials |
| Special Features | Right-angle (R90°) solder terminals, thickened back cover for cable
support, positioning peg for accurate alignment |
Key Features
- True SAS 29P female connector with 1.27mm pitch for high-density PCB layouts
- Right-angle (R90°) solder wire design optimizes cable routing in slim server and industrial enclosures
- Ni 50U" + Au 15U" + Sn 80U" plating for excellent conductivity, low contact resistance and long-term
corrosion resistance
- Phosphor bronze C5191-H terminals provide stable contact force and durability under vibration and
thermal cycling
- LCP G/F UL94-V0 HF housing ensures high mechanical strength and heat resistance for demanding
electronic environments
- Positioning peg and thick back cover enhance assembly accuracy, cable strain relief and mechanical
stability
- Defined mating / unmating forces and single-pin retention ≥0.8kgf guarantee secure, reliable connections in wiring harnesses
- Suitable for electrical power and electronic signal transmission, compatible with customization for different wire gauges and cable
types
⚙️ Applications
- This SAS 29P right-angle solder female connector is ideal for many wire / cable / electrical applications:
- Server & Data Center Equipment
- SAS signal and power connectors on backplanes and controller boards
- Right-angle PCB-to-cable connections in 1U/2U servers and storage
arrays
- Storage & Communication Systems
- HDD/SSD interface boards, RAID and JBOD enclosures
- Network and communication devices requiring high-speed SAS-style
connectors
- Automotive & Industrial Electronics
- Industrial PCs, data recorders and controllers using SAS-style
connectors for internal storage or logging
- Automotive and special-equipment wiring harnesses needing compact
right-angle connector solutions
- Custom Wire & Cable Assemblies
- OEM / ODM wire cable connector projects where PCB space is limited and cables must exit at 90°
⚠️ Notes
- Choose appropriate wire gauge and insulation according to the 1.5A @ 40VAC rating and your power / signal
requirements.
- Follow recommended soldering profiles for the tin-plated tails to achieve full wetting and strong
mechanical pull-out strength, while avoiding overheating of the LCP
housing.
- Keep gold-plated contact areas clean; avoid touching terminals with bare hands to prevent
contamination and oxidation that could increase contact resistance.
- When assembling, make full use of the positioning peg and the thick back cover to align the connector correctly and provide strain relief for the
cable.
- Do not exceed the specified mating/unmating forces and durability cycles to maintain terminal elasticity and connector lifetime.
- Store connectors in dry, anti-static packaging, and handle them in ESD-protected areas when integrating into
sensitive PCB and electronic systems.
- Operate the connector only within the specified temperature range (–20°C to +85°C) and electrical ratings for long-term reliability.
