Product Description

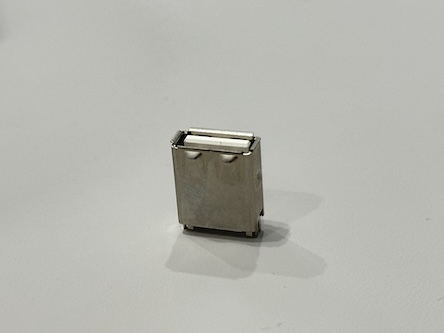

This USB 2.0 A/F solder-type connector features a robust protective housing and a nickel-plated shielding structure designed for stable electrical and signal transmission. The reinforced LCP insulation provides exceptional heat resistance and flame retardancy, while precision-plated brass terminals ensure consistent conductivity and long-term durability. Its reliable mechanical retention and gold-finished contact interface offer strong mating stability, making it ideal for cable fabrication, power supply assemblies, charging devices, industrial controllers, and various electronic equipment requiring high-quality USB interfaces.

Applications

Cable manufacturing lines and USB extension assemblies

Chargers, power banks, adapters

Industrial control equipment and instrumentation

Automotive infotainment and diagnostic devices

Server and communication devices needing stable signal connectors

Consumer electronics and smart appliance interfaces

Precautions

Ensure proper soldering temperature to avoid deformation of the LCP housing.

Avoid excessive mechanical stress on terminals during assembly.

Maintain plating integrity by preventing exposure to corrosive environments.

Verify compatibility with cable OD and PCB layout before mass production.
