USB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power Transmission

Ask Lasest Price
Brand Name :	ShuangYi
Model Number :	SHU-04M-023-N2H
Certification :	ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Price :	$0.01-0.02 PCS FOB
Payment Terms :	T/T
Supply Ability :	500000 pcs per month
Delivery Time :	8-15 working days

Add to Cart

Product Details
Company Profile

USB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power Transmission

Product Description

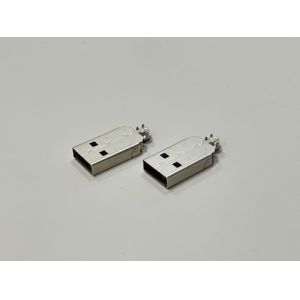

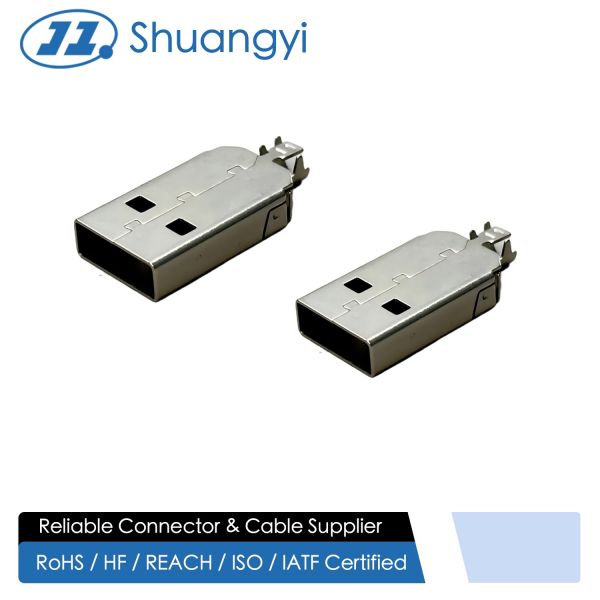

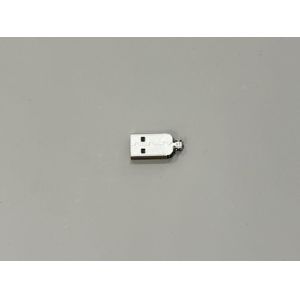

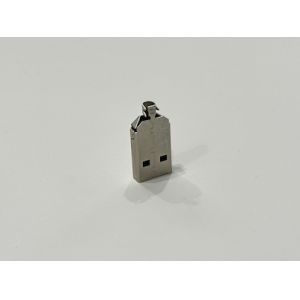

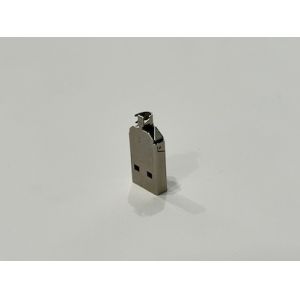

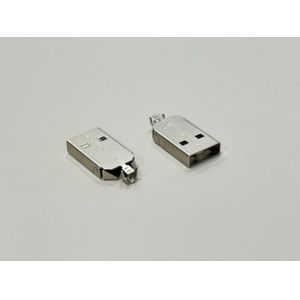

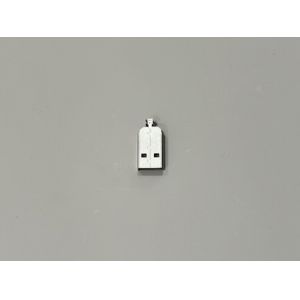

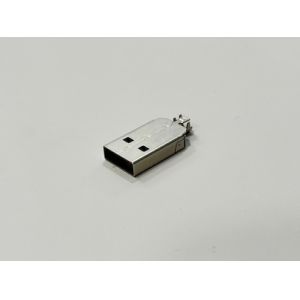

This USB 2.0 AM connector features a durable two-piece SPCC metal shell with a 24.7 mm length and support for 2.2 mm cable OD, making it ideal for molded USB cable assemblies. The shell is plated with 100 μ″ copper and 80 μ″ nickel to ensure excellent corrosion resistance, conductivity, and long-term stability. Designed for reliable electrical and signal transmission, it is widely used in computers, peripherals, chargers, consumer electronics, and custom wire-to-cable manufacturing.

USB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power Transmission

Product Type	USB 2.0 AM 2-Piece Metal Shell Connector
Structure	Two-piece stamped iron shell (SPCC)
Overall Length	24.7 mm
Cable OD Compatibility	2.2 mm
Material Thickness	0.35 mm (SPCC)
Plating	Copper ≥100 μ″ + Nickel ≥80 μ″
Insulation / Fit	Designed for molded USB cable assembly
Salt Spray Test	24 hours minimum
Application	Data transmission & power supply cables
Compliance	RoHS2.0 + REACH

Applications

USB data and power cable manufacturing

Consumer electronics and peripheral devices

Computer accessories and charging products

Automotive infotainment wiring

Custom PCB-to-wire cable assemblies

Precautions

Ensure cable OD matches the required 2.2 mm for proper molding and strain relief

Verify plating thickness requirements before mass production

Avoid deformation of the shell during assembly and crimping

Store in a dry, clean environment to maintain surface integrity

USB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power Transmission
